Jumboo Roll Slitting Machine

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GDFQ3500D

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Rewind Station: 7 Units

Material Various: CPP, Metalized Film

Thickness: 15—120um

Unwind Maximum Diameter: 1000MM

Unwind Width: 3200mm

Machine Speed: 600m/min

Working Speed: 500-550 M/min

Slitting Type: By Razor

Minimum Rewind Width: 350mm (2 Stations)

Normal Rewind Width: 550-1500mm

Additional Info


Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

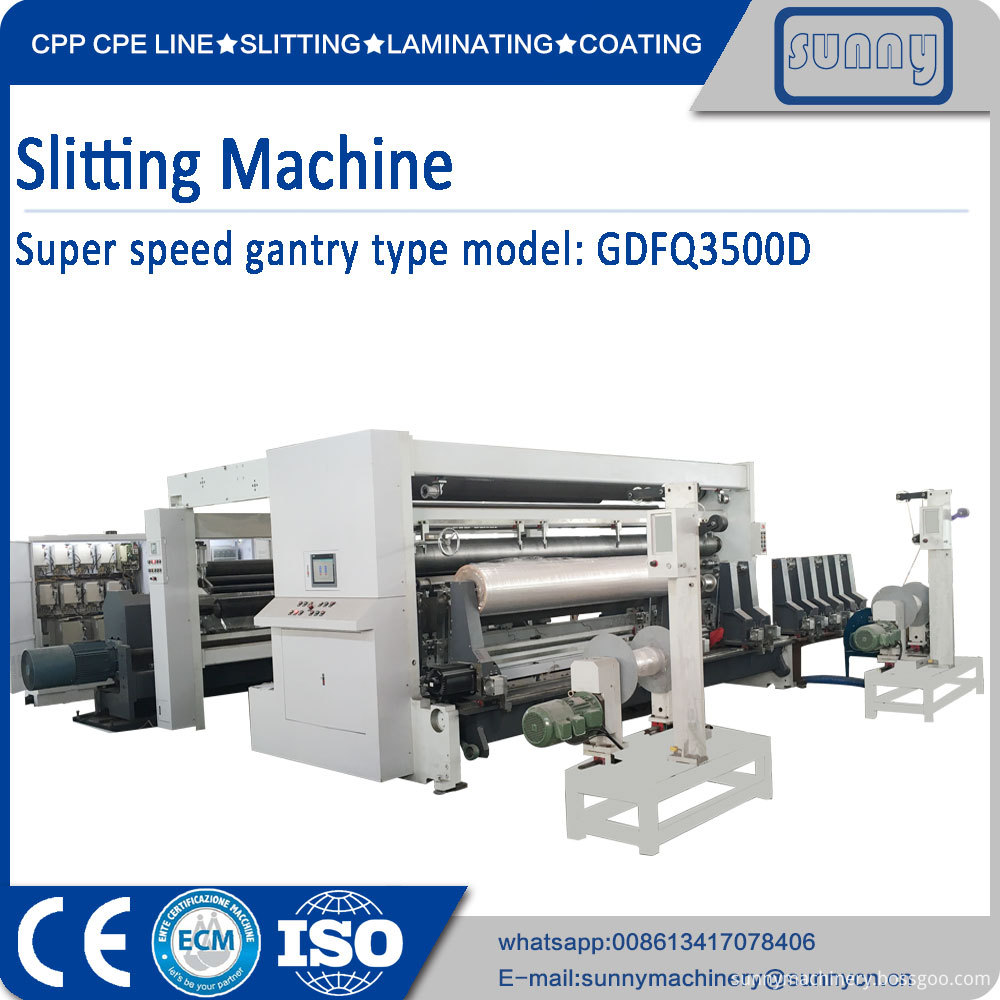

Jumboo roll slitting machine model GDFQ3500D

Jumboo roll slitting machine is for converting of packaging films, metallized films, tobacco films as well as any kind of papers. Machine concept guarantees High Performance, cutting-edge technology and ultra-flexible converting of different materials for industrial applications.

Slitting Machine 4

1. Material various: CPP, Metalized film

2. Thickness: 15-120um

3. Unwind maximum diameter: 1000MM

4. Unwind width: 3200mm

5. Machine speed: 600m/min

6. Working speed: 500-550 m/min (depends on material various and unwind&rewind quality)

7. Slitting type: by razor

8. Rewind maximum diameter: 1000mm

9. Minimum rewind width: 350mm (2 stations)

10. Normal rewind width: 550-1500mm

11. Rewind station: 6units totally

12. Machine power: 65KW

13. Machine weight: about 17000 KG

14.  External dimension: 7500mm (W) x 8000mm (L) x 2220mm (H)

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
