3D Holographic film coating machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 180 Days

Basic Info

Model No.: TB1300

Effective Width: 1300mm

Suitable Base Material: PET Film 0.012-0.050mm

Maximum Machine Speed: 80m/min

Maximum Running Speed: 60m/min

Maximum Unwind Diameter: Φ600mm

Maximum Rewind Diameter: Φ600mm

Heating Method: Electric-heating, Hot-wind Impact Drying

Maximum Drying Temperature: 80℃

Anilox Roller Bounce: ≤±0.02mm

Power Supply: 380V±10%, 50HZ, 3 Phase 5 Lines

Additional Info


Productivity: 80 m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

3D Holographic film coating machine TB1300

3D Holographic film coating machine is used for UV coating, PET roll material laser embossing operations.

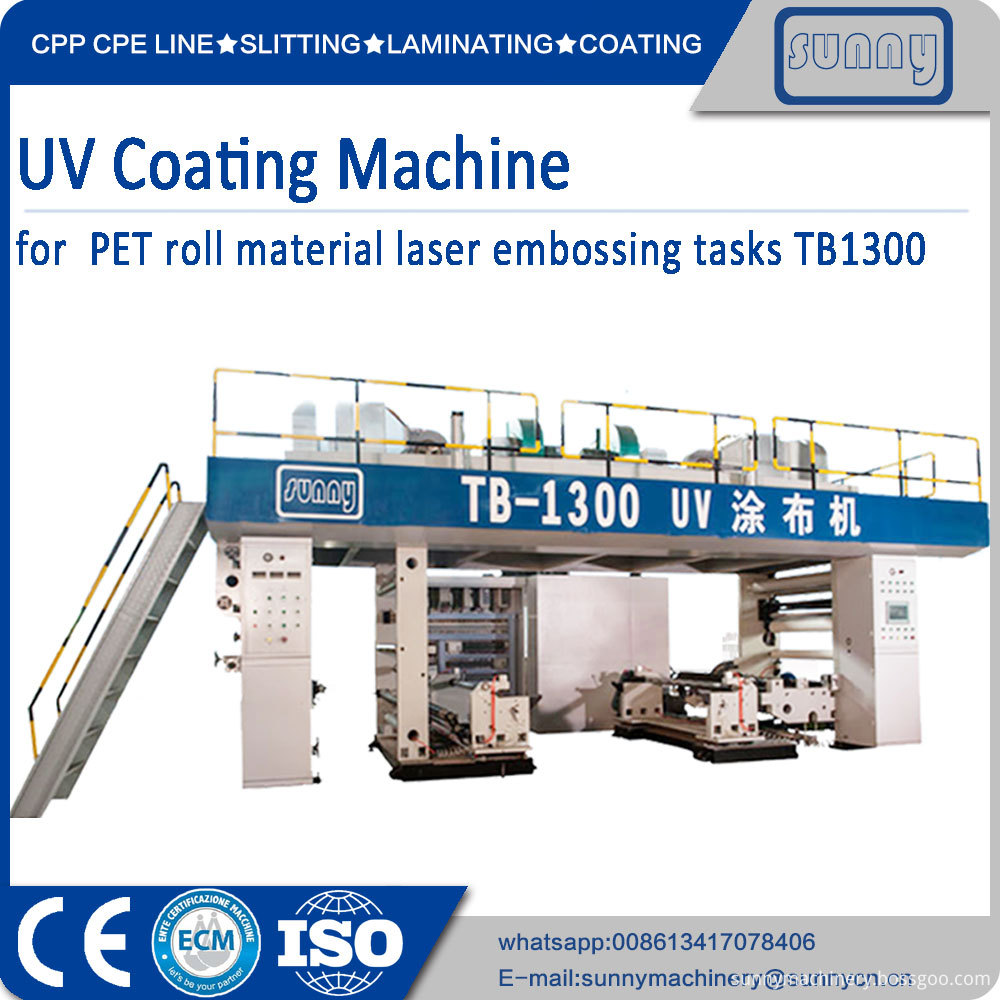

Uv Coating Machine Tb1300

Main technical parameters:

1). Effective width: 1300mm

2). Suitable base material: PET film 0.012-0.050mm

3). Maximum machine speed: 80m/min

4). Maximum running speed: 60m/min

5). Maximum unwind diameter: φ600mm

6). Maximum rewind diameter: φ600mm

7). Heating method: electric-heating, hot-wind impact drying

8). Maximum drying temperature: 80℃

9). Reel core diameter: 3 inches

10). Reel up end face flatness: ≤±1mm

11). Tension distinguish accuracy: 1N

12). Film surface temperature difference: ≤±1.5℃

More details as follow:

dry laminating machine details

slitting machine

slitting machine

Extrusion laminating machine

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
