Surface Winding Slitter Machine SUNNY MACHINERY

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GFTW2600C

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Slitting Material: PET/BOPP/POF/LDPE/HDPE

Maximum Machine Speed: 500 M / Min

Thickness: 10-100μm

Normal Slitting Speed: 420 M / Min

Rewind Maximum Diameter: 700 Mm

Maximum Effective Width: 2500 Mm

Maximum Slitting Width: 1300 Mm

Rewind Air-shaft: 3 Inches

Rewind Reeling Core: 3 Inches And 6 Inches Paper-core

Machine Total Power: AC 380V 3 Phase 5 Lines. About 60 Kw

Additional Info


Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

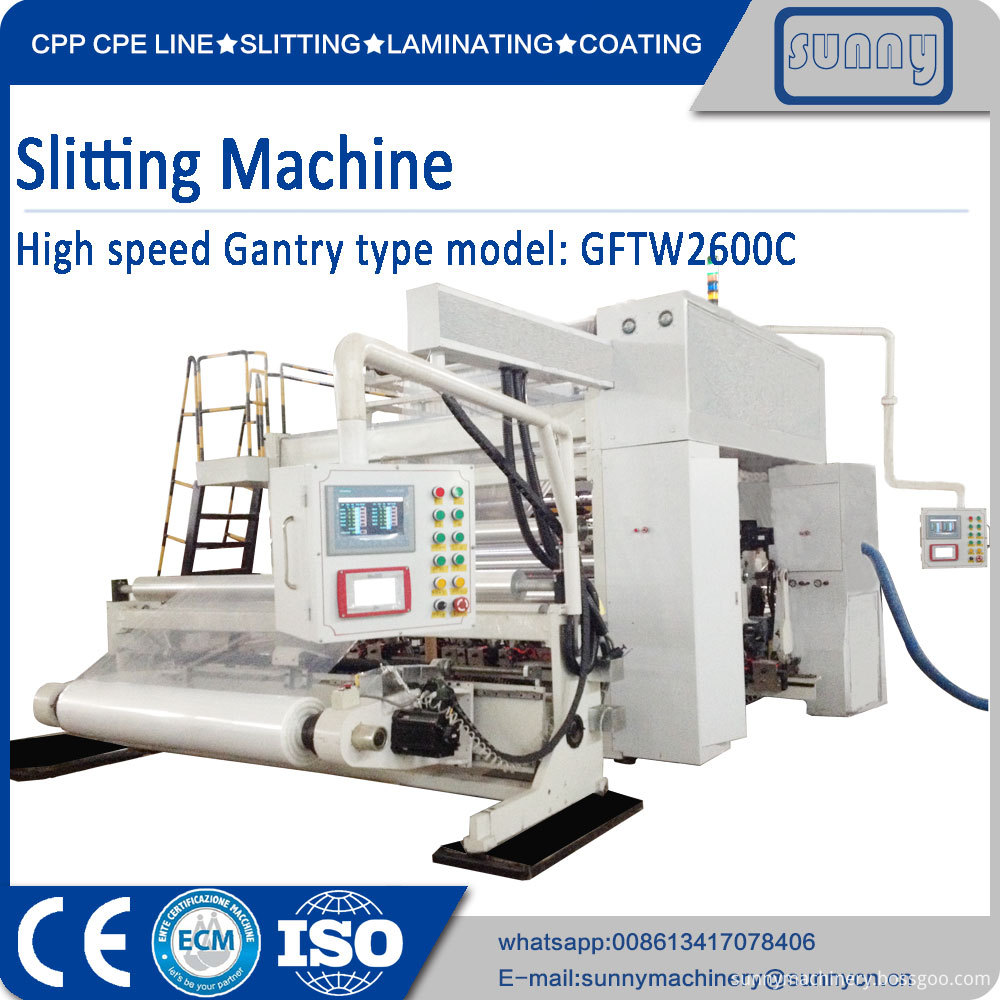

Surface Winding Slitter Machine SUNNY MACHINERY GFTW2600C


Surface Winding Slitter Machine SUNNY MACHINERY is highly precision and sensitive equipment for POF film 10-100μm. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.

Main Technical Parameters:

1). Slitting material: 10-100μm, PET/BOPP/POF/LDPE/HDPE

2). Maximum machine speed: 500 m / min; Normal slitting speed 420 m / min; machine running stable, non-obvious vibrate and noise.

3). Unwind Maximum load-bearing: 2000 kg; occasionally maximum diameter: 1400 mm, normal work 1000 mm; Minimum width of Unwind is 500mm.

4).  Rewind Maximum diameter: 700 mm

5). Maximum effective width: 2500 mm; Maximum slitting width: 1300 mm; Maximum second rewind width: 1300 mm; Minimum slitting width: 150 mm;

6). Unwind reeling core: 3 inches and 6 inches plug, diameter is 70mm paper-core;

7).  Rewind reeling core: 3 inches and 6 inches paper-core

8).  3 inches rewind air-shaft 1100mm 2 pieces, 1400mm 2 pieces

9).  Rewind neatness < 1 mm

10). Machine total power: AC 380V 3 phase 5 lines. About 60 kw

11).  Air-source air pressure > 5 kg/cm2

12).  External dimension: 5980 mm x 4500 mm x3200 mm (L x W x H)

13). Machine dead load: About 20 Tons

More details as follow:

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
