Large Roll Slitter Rewinders

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GDFQ3500F

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Slitting Material: CPP、OPP、PET、PE、BOF、Metalized Film And So On

Thickness: 10--100μm

Maximum Diameter: 1000mm

Weight: 2500kg

Unwind Width: 3500mm

Guiding Type: Ultrasonic Edge Position Control (EPC)

Machine Speed: 800m/min

Run Speed: 20--650m/min (depends On Film Various, Unwind And

Slitting Method: Razor Slitting

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 800m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

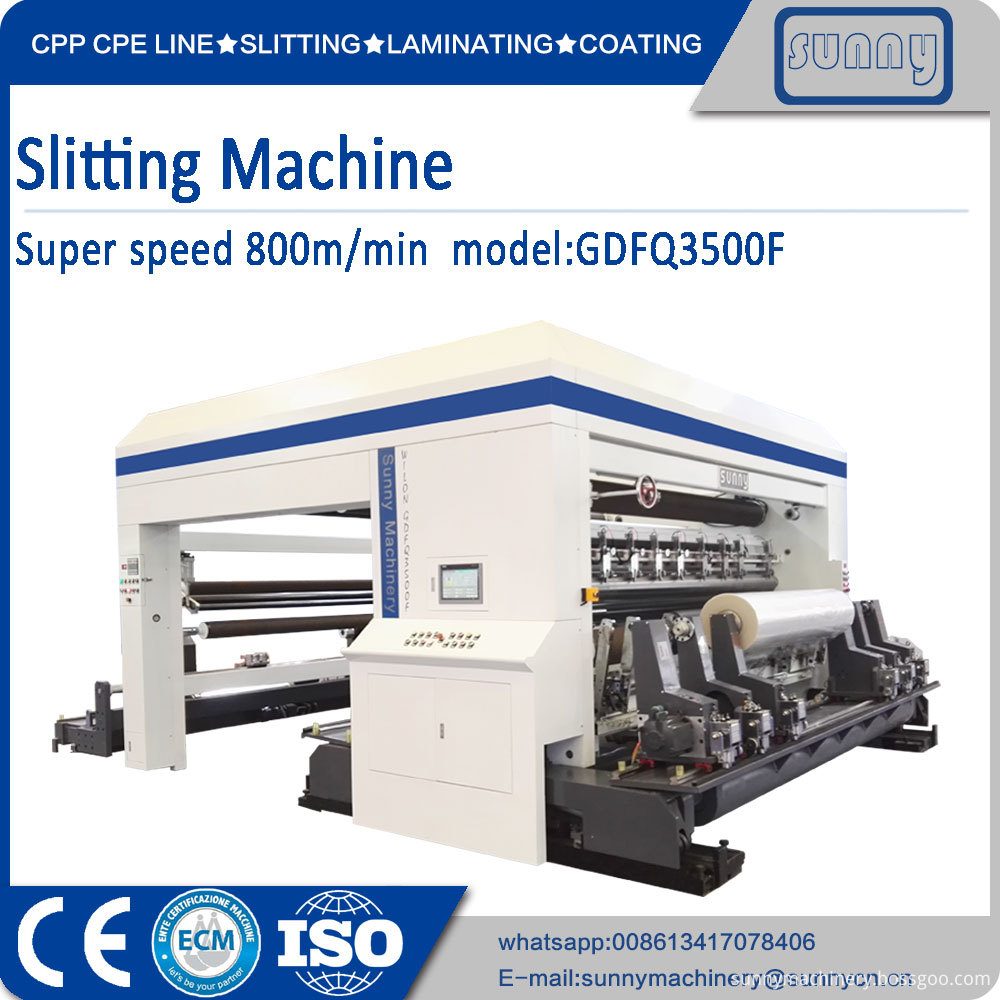

Large Roll Slitter Rewinders GDFQ3500F

Large Roll Slitter Rewinders is highly precision and sensitive equipment for plastic film or paper roll materials, which is applicable to slit BOF, OPP, PET,PE,Metalized film, CPP etc. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.

SLITTING-MACHINE-GDFQ3500F-5jpg

Slitting machine material: PP.OPP.PET.PE.BOF.Metalized film and so on

Thickness: 10--100μm

Unwind Maximum diameter: 1000mm

Unwind width: 3500mm

Rewind maximum diameter: 1000mm

Rewind minimum width: 300mm

Rewind maximum width: 3500mm

Rewind stations: 6 units

Whole Machine Total Power: About 65 KW;

Whole Machine Weight: About 22000 Tons;

External Dimension:

6500mm (W) x 8000mm(L) x 3050mm(H)

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
