CPP CPE Plastic film slitting and rewind machine

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GDFQ2700

Application: Mechinery&Hardware

Type: Roll Slitter

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Work Method: Round Knife Cutting

Slitting Material: PET BOPP Metalized Film

Thickness: 8-50μm

Maximum Diameter: 1200mm

Unwind Film Width: 2500 Mm

Wording Speed: 10-650m/min

Edge Or Line Position Control Type: Edge Position Control (EPC)

Maximum Rewind Diameter: 1000 Mm

Minimum Rewind Width: 400 Mm

Maximum Rewind Width: 1500 Mm

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

CPP CPE Plastic film slitting and rewind machine GDFQ2700

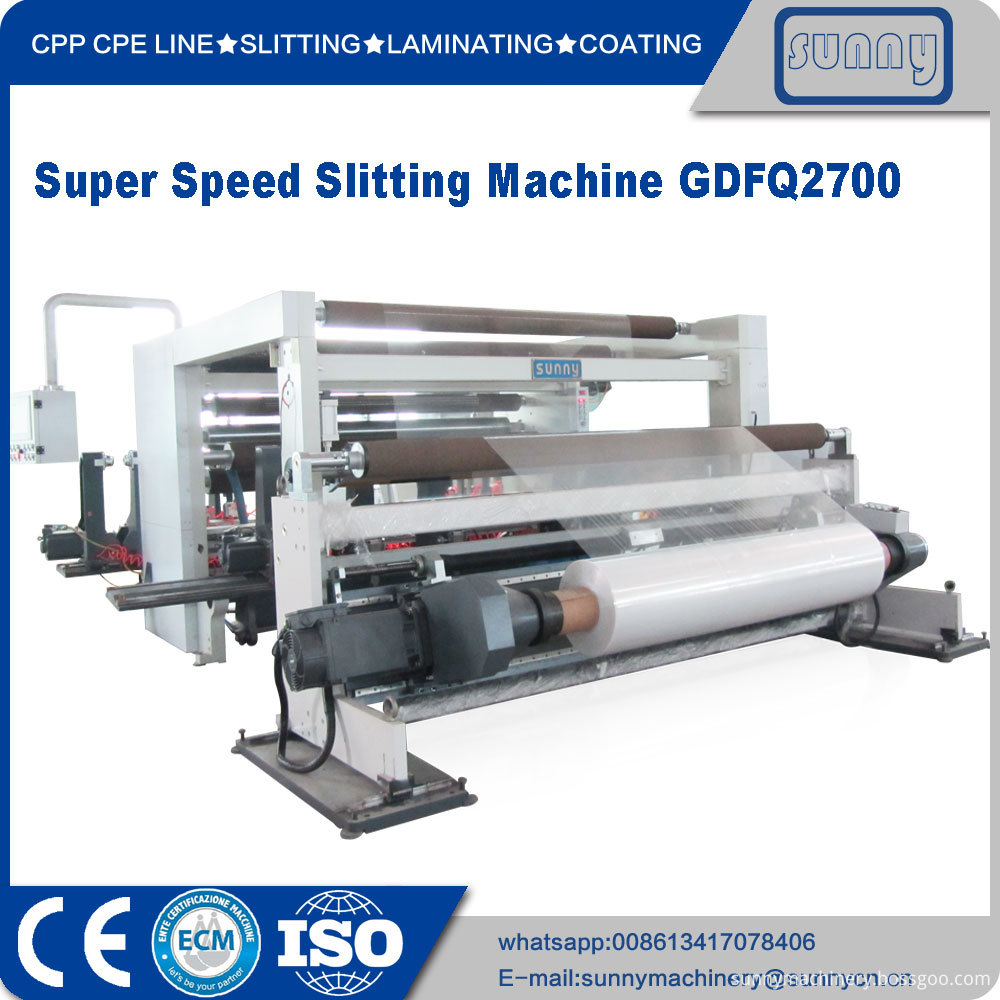

Super Speed Slitting Machine Gdfq2700 05

CPP CPE Plastic film slitting and rewind machine model GDFQ2700 is highly precision and sensitive equipment for PET, BOPP,Metalized film etc. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.

1

Slitting material


Type:  PET, BOPP,Metalized film

Thickness: 8-50μm

2

Unwind specification


Maximum diameter: 1200mm

Weight: 2500 kg

Unwind film width: 2500 mm

Paper-core specification: 3 inches, 6 inches

Edge or line position control type    Edge position control (EPC)

3

Wording speed

10~650m/min

4

Slitting type

Razor slitting type

5

Rewind specification

Maximum diameter:1000 mm



Minimum rewind width: 400 mm

Maximum rewind width: 1500 mm

Paper-core specification: 3″  6″;

Rewind station: 5 sets;

6

Circumscribed System

Supply voltage: 415v  +/- 10%    Frequency: 50 Hz

Phase: 3 phases              Air pressure: 6 Mpa


More details as follow:

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

 Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

 All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
