Jumbo Roll Slitter Rewinder machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GFTW1200A1

Application: Mechinery&Hardware

Type: High-Speed Slitting Machine

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Guiding Precision: ±0.2mm (depends On Detection Line Or Picture)

Max. Raw Material Unwind Diameter: 800 Mm

Maximum Rewind Diameter: 630mm (3 Inches / 6 Inches)

Effective Unwind Width: 1200 Mm

Slitting Maximum Width: 1200mm

Slitting Final Products Width: 100mm-1200mm

Rewind Paper-core: 3 Inches 6 Inches

Machine Speed: 20-350m/min

Normal Maximum Working Speed: 300m/min

Detection Precision: ±0.1mm

Additional Info


Productivity: 300m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

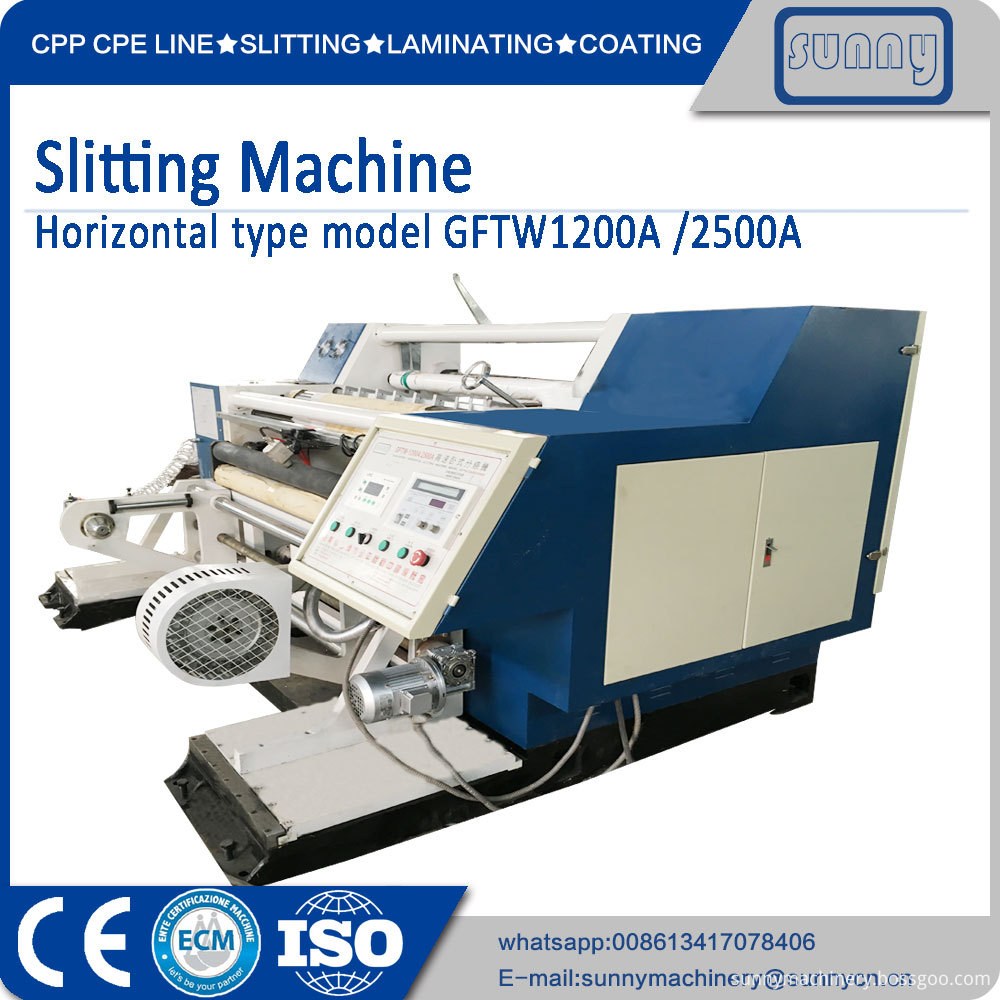

Jumbo Roll Slitter Rewinder machine GFTW1200A1


Application:Jumbo Roll Slitter Rewinder machine GFTW1200A1  Adopting unique design, insured machine operation is easy and simple to handle, raw material adaptation is good, material BOPP, BOPET, BOPS, BOPA, CPP, PE, PVE and laminated film, metalized film etc are suitable for slitting.

Maximum raw material diameter: φ800mm

Maximum rewind diameter: φ630mm (3 inches / 6 inches)

Effective unwind width: 1200mm

Slitting maximum width: 1200mm

Slitting final products width: 100mm-1200mm

Rewind paper-core: 3 inches / 6 inches

Machine speed: 20-350m/min; normal maximum working speed:300m/min

Detection precision: ±0.1mm

Guiding precision: ±0.2mm (depends on detection line or picture)

Complete machine power: 380V/3 phase, 50Hz about 27KW

Total weight: about 5 tons

External dimension:1800mm x2670mm x1400mm

slitting and rewinding machine GFTW900D3

slitting machine

slitting machineExtrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
