Single T DIE PE plastic film extruder machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 180 Days

Basic Info

Model No.: JF1200

Type: Profile Extruder

Plastic Processed: PE

Product Type: Profile Extrusion Molding Machine

Feeding Mode: Multiple Feed

Assembly Structure: Integral Type Extruder

Screw: Single-Screw

Engagement System: Full Intermeshing

Screw Channel Structure: Deep Screw

Exhaust: Exhaust

Automation: Automatic

Computerized: Computerized

Extrusion Width: 1200 Mm

Extrusion Thickness: 0.01-0.05 Mm

Lamination Line Speed: Max.150 M/min

Maximum Extrusion Output: 150 Kg/h

Extruder Power: 55 KW

Compressed Air Pressure: 0.7 MPa

Unwind Maximum Diameter: 800 Mm

Rewind Maximum Diameter: 800 Mm

Applicable Film Coating Resin: PE LDPE Coating Level

Screw Diameter: 90 Mm L/D 35:1

Additional Info

Packaging: NAKED OR WOODEN PALET

Productivity: 150 kg/h

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 300 SETS PER YEAR

Certificate: CE

HS Code: 8477

Product Description

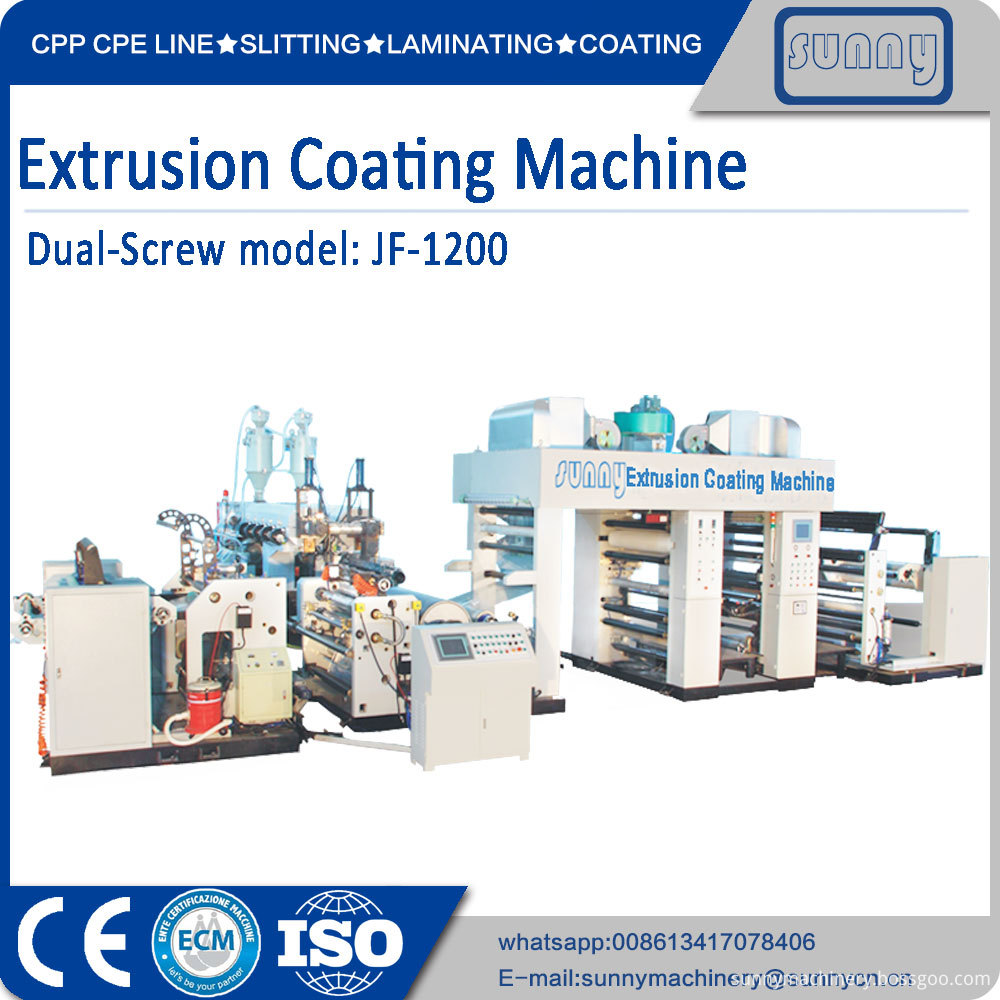

Single T DIE PE plastic film extruder machine model JF1200


Dual Screw Extrusion Coating Machinejf1200

Single T Die Pe Plastic Film Extruder Machine Single T DIE PE plastic film extruder machine is the advanced products elaborately manufactured by our factory reference advanced technology at home and abroad and the actual production condition. The structure of this machine is reasonable, appearance is novelty, it is easy to maintain and operate and less energy consumption, high efficiency, products enjoy excellent quality, which is the ideal equipment for producing membrane laminating material.

Items

Parameters

Applicable film coating resin

PE, LDPE coating level

Membrane width

1200 mm

Membrane thickness

0.01-0.05 mm

Lamination line speed

Max.150 m/min

Maximum extrusion output

150 kg/h

Running roller width

1300 mm

Die effective width

1400 mm

Unwind maximum diameter

800 mm

Rewind maximum diameter

800 mm

Paper-core specification

3 inches

Extruder power

55 KW

Screw diameter

90 mm  L/D 35:1

Totally power

About 250 KW

External dimension

10 M × 8 M × 2.5 M (L x W x H)

Complete machine weight

About 30 Tons

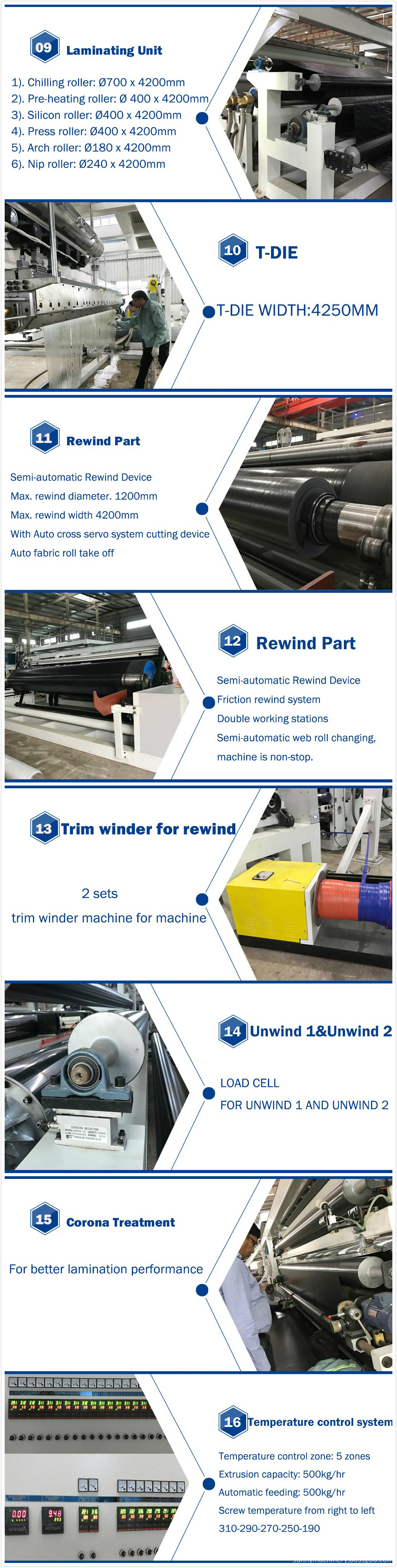

More details as below:

Extrusion Laminating Machine 01Extrusion Laminating Machine 02

slitting machine


slitting machine

Extrusion laminating machine

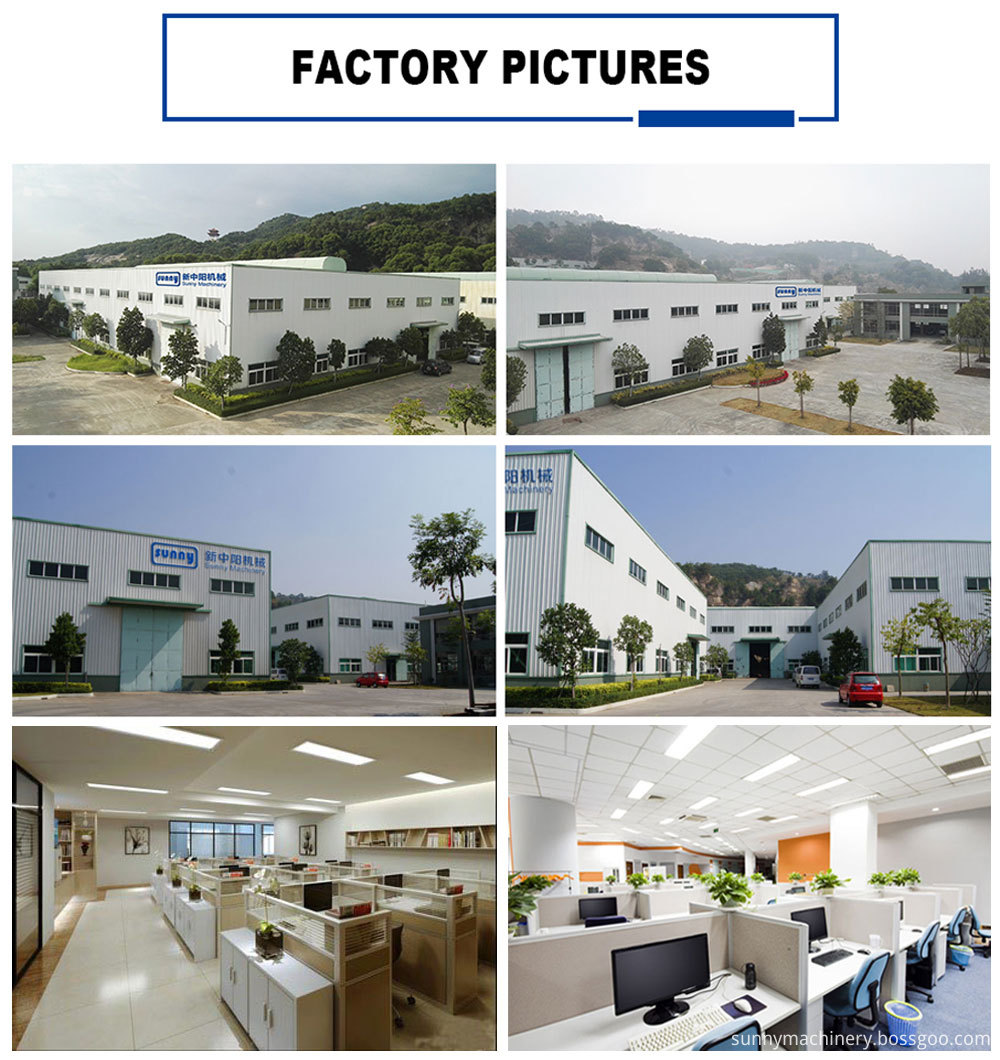

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

 Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

 All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

  Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.

Slitting Machine


slitting machine ce

OUR EXHIBITIONS ALL OVER THE WORLD:

EXTRUSION LAMINATING MACHINE

slitting machine
