Paper Slitting Rewinder Machine

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: FQ1350

Slitting Material: Aluminum Foil Laminated Paper, Metalized

Thickness: 35-230g/m2

Material Width: 1300-1350mm

Slitting Width: 70-114mm

Idler Roller Width: 1450mm

Machine Speed: Max.400m/min

Run Speed: Max. 350m/min (more Than 200g / M2 Speed

Unwind Diameter: Max.φ1500mm (Φ3″,Φ6″ Air-shaft)

Rewind Diameter: Max.φ850mm (Φ3″,Φ4.7″ Air-shaft)

Unwind Motor: 22KW

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 800m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

Paper Slitting Rewinder Machine

Product Description

Product Application
Paper Slitting Rewinder Machine is mainly use for slitting production aluminum laminated paper, metalized paper and paperboard, that is the necessary equipment of Paper packaging company.

 Material range

aluminum foil laminated paper, metalized paper and paperboard 35-230g/m2

Material width

1300-1350mm

Slitting width

70-114mm

Idler roller width

1450mm

Machine speed
Max.400m/min
Run speed
Max. 350m/min (more than 200g / m2 speed above 150 m / min)
Unwind diameter
Max.1500mm (3″,6″ Air-shaft)
 Unwind motor
22KW
Main traction motor

15KW

Rewind motor
7.5KW (2sets)
External dimension

L 4800mm x W 2500mm x H 1850mm

 Whole machine weight
about 5T
Power supply

380V±10% 50HZ 3phase 5wires

 Compressed Air
0.7MPa
Rewind end face neatness
less than 0.2mm
Rewind diameter

Max.850mm (3″,4.7″ Air-shaft)


750-x-320



750320          750-320

Main Features


1) Whole machine system adopts SIMENS PLC Controller and HMI interface achieved full automatic control that guaranteed machine running in high speed with stable performance.

2) Unwind part adopts motor drive unwind with full automatic tension control. Air-shaft loading material and hydraulic arm lifting. Web guiding system adopt MITSUHASHI LPC. It is equipped with manual paper splicing platform that is convenient to change roll and splicing paper.

3) Speed synchronization of Traction and Rewind system and Tension system adopt YASKAWA AC Frequency Vector control system that achieving international advanced level.

4) Slitting Part adopt domestic famous brand circular disc

cutting blade, accessories replacement are extremely convenient

5) Rewind part is dual shaft rewinding with AC Frequency Motor, AC Frequency closed-loop Vector system control with function like as Speed synchronization, tension, taper control.




Certifications


Detailed Images

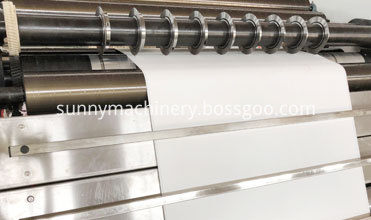

slitter and rewinder machine

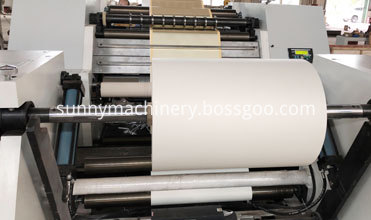

slitting machine

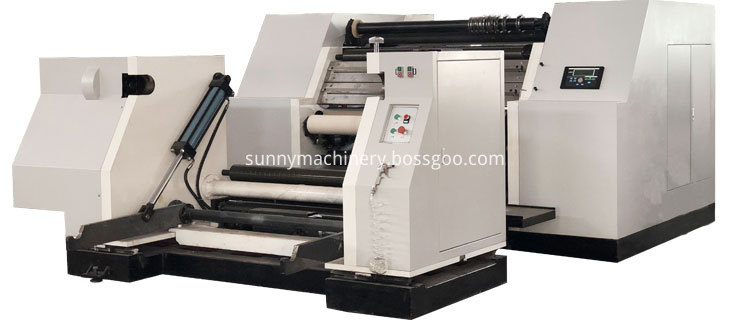

slitting machine


Extrusion laminating machine


slitting machine ce



Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
