PAPER SLITTER REWINDER MACHINE FQ1350

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: FQ1350

Application: Mechinery&Hardware

Type: High-Speed Slitting Machine

Work Method: Round Knife Cutting

Structure: Frame Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Process Materials

Suitable Substrates: Film Cutting

Packaging Material: Paper

Slitting Material: Aluminum Foil Laminated Paper, Metalized

Thickness: 35-230g/m2

Material Width: 1300-1350mm

Slitting Width: 70-114mm

Idler Roller Width: 1450mm

Machine Speed: Max.400m/min

Run Speed: Max. 350m/min (more Than 200g / M2 Speed

Unwind Diameter: Max.φ1500mm (Φ3″,Φ6″ Air-shaft)

Rewind Diameter: Max.φ850mm (Φ3″,Φ4.7″ Air-shaft)

Unwind Motor: 22KW

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 800m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

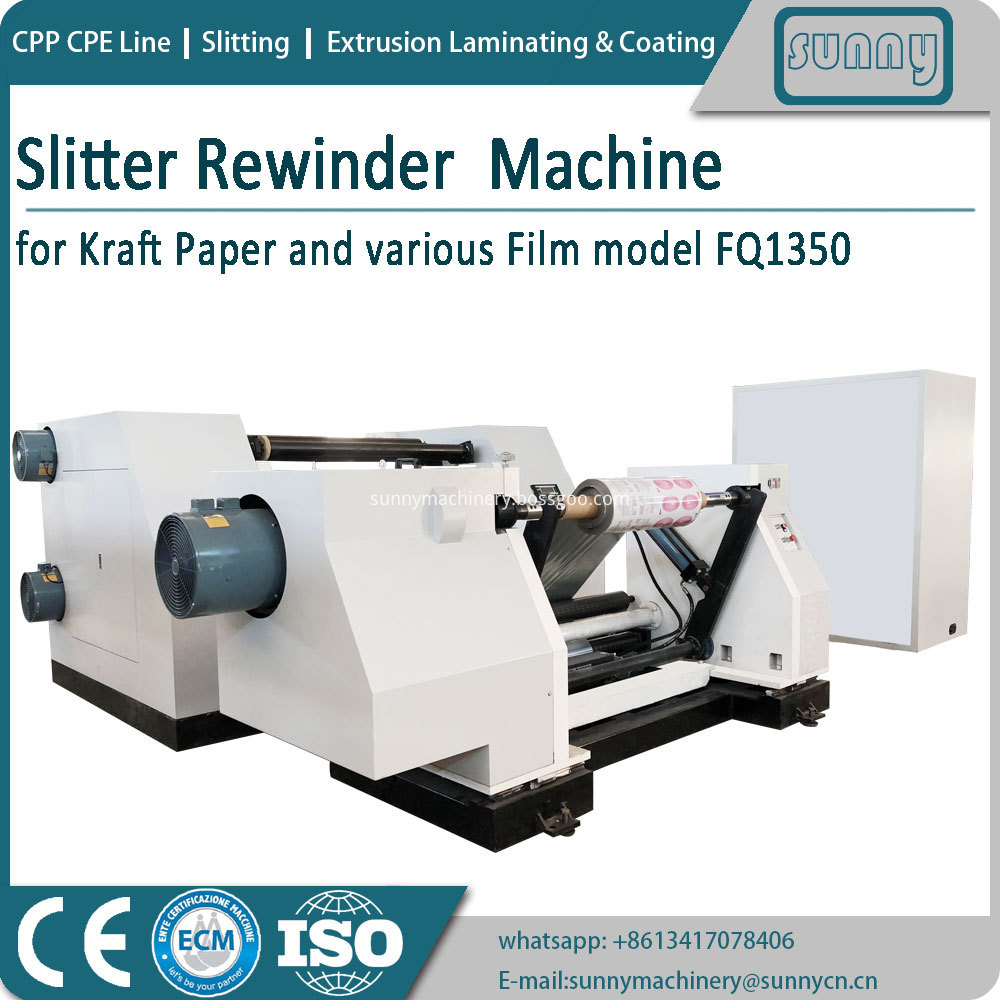

PAPER SLITTER REWINDER MACHINE FQ1350

Application:
All types of Paper Mills & Paper Converters require Slitting of Paper for the different type of applications.
Paper slitting machine is use for Slitting Material like kraft paper, stonepaper and CPP, CPE, BOPP, PET,
LDPE, HDPE film etc.  This Slitting Rewinding Machine is able to process all types of Paper of any GSM
thickness.  Manufacture of Slitting machine

Slitter Rewinder Machine 2



Main Techinical Parameters:
1). Material range: aluminum foil laminated paper, metalized paper and paperboard 35-230g/m2
2). Material width: 1300-1350mm
3). Slitting width: 70-114mm
4). Idler roller width: 1450mm
5). Machine speed: Max.400m/min
6). Run speed: Max. 350m/min (more than 200g / m2 speed above 150 m / min)
7). Unwind diameter: Max.φ1500mm (Φ3″,Φ6″ Air-shaft)
8). Rewind diameter: Max.φ850mm (Φ3″,Φ4.7″ Air-shaft)
9). Unwind motor: 22KW
10). Main traction motor: 15KW
11). Rewind motor: 7.5KW (2sets)
12). External dimension: L 4800mm x W 2500mm x H 1850mm
13). Whole machine weight: about 5T
14). Power supply: 380V±10% 50HZ 3phase 5wires
15). Compressed Air: 0.7MPa
16). Rewind end face neatness: less than 0.2mm

slitter and rewinder machine

slitting machine


slitting machine


Extrusion laminating machine


slitting machine ce



Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
