Slitting machine for film soft packing material

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GDFQ3500A

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Material: BOPP Metalized Film

Thickness: 10µmm-100µmm

Raw Material Diameter: Maximum 1000 Mm

Film Width: 3300mm

Rewind Width: 250mm—1200 Mm (including 250mm 2 Stations, Above

Rewind Diameter: Maximum 1000mm

Rewind Station: 7 Units

Web Guiding Method: Ultrasonic Edge Position Control

Machine Speed: 600m/min Depends On Unwind Quality, Rewind Paper-c

Machine Weight (total Weight): About 18000 KG

Additional Info


Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

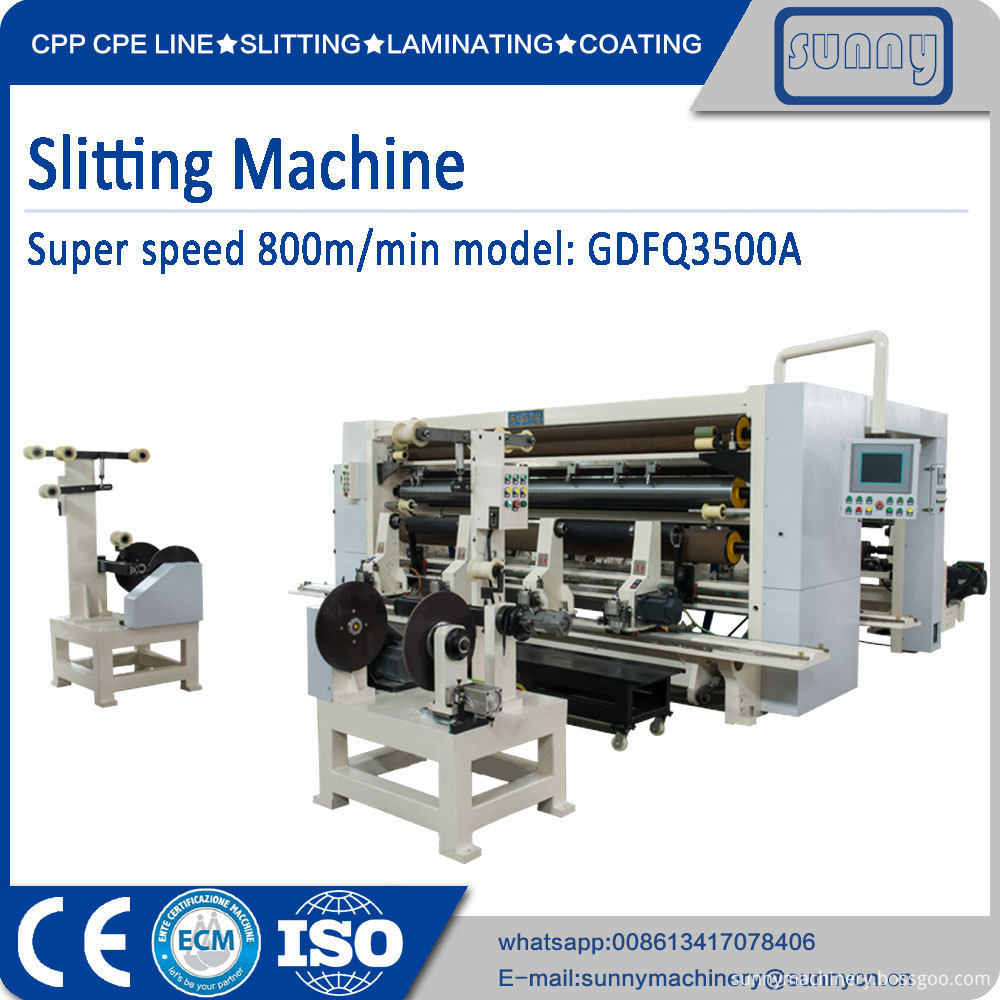

Slitting machine for film soft packing material GDFQ3500A

Slitting machine for film soft packing material GDFQ3500A is highly precision and sensitive equipment for BOPP,Metalized film etc. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.


1.2. Material: thickness 10µmm-100µmm BOPP metalized film

1.3. Material density: 0.93g/cm3

1.4. Raw material diameter: maximum 1000 mm

1.5. Film width: 3300mm; roller surface width: 3500mm

1.6. Rewind inner-core: 3 inches, 6 inches paper-core

1.7. Rewind width: 250mm-1200 mm (including 250mm 2 stations, above 450mm any stations)

1.8. Rewind diameter: maximum 1000mm

1.9. Rewind station: 7 units

1.10. Guiding method: ultrasonic edge opposite

1.11. Slitting method: razor

1.12. Machine speed: 600m/min

1.13. Running speed: 20-550m/min (depends on unwind quality, rewind paper-core quality)

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
