Turret slitting rewinding machine

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GFTW4200C

Application: Mechinery&Hardware

Type: Roll Slitter

Work Method: Flat Knife Slitting

Structure: Guide Roller Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Final Inspection

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Slitting Material: BOPET ,CPP,BOPP Film;

Thickness: 0.02-0.12mm

Maximum Machine Speed: 400m/min

Normal Slitting Speed: 350m/min

Maximum Rewind Diameter Of Rewind: 800 Mm;

Maximum Effective Width: 4200mm

Maximum Slitting Width: 1200mm

Minimum Slitting Width: 400mm

Machine Total Power: AC 380V 4 Line About 65 KW;

External Dimension: 6200mm X 5800mm X 2100mm (L X W X H);

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

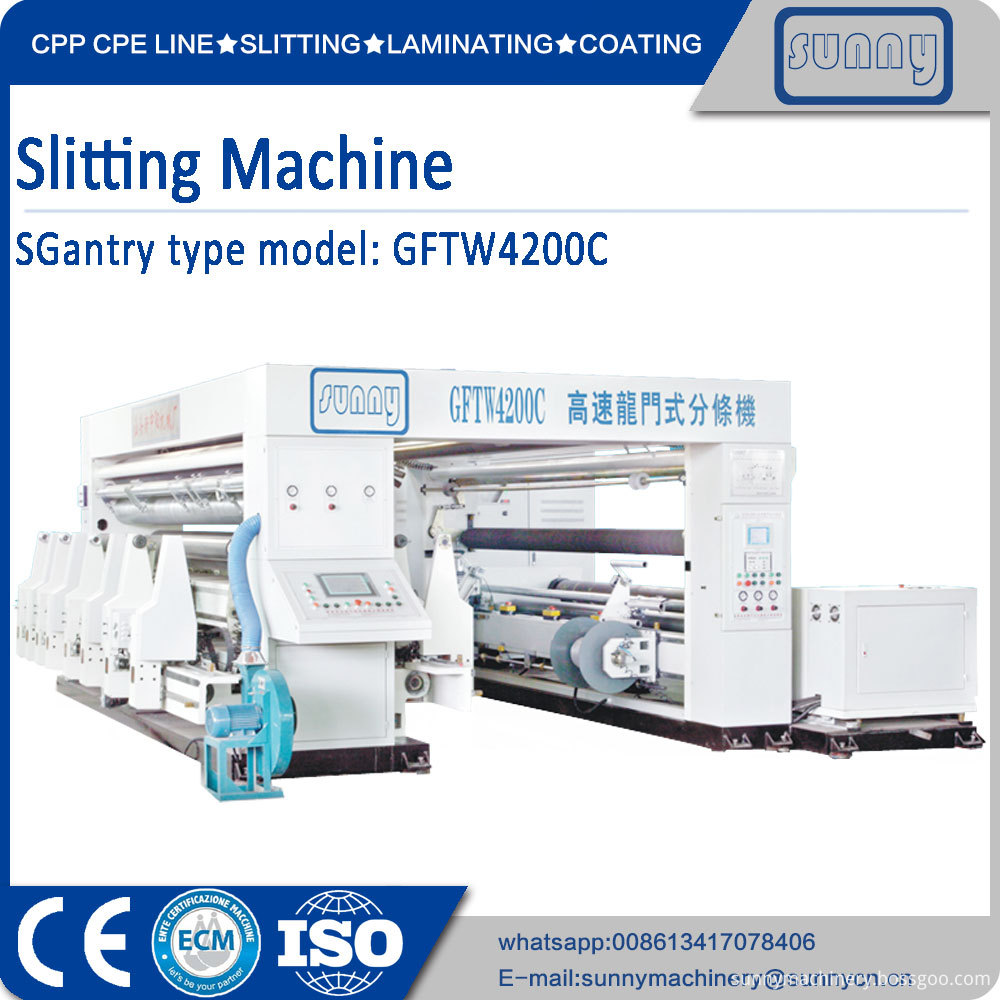

Turret slitting rewinding machine GFTW4200C

Turret slitting rewinding machine is highly precision and sensitive equipment for BOPET, BOPP, CPP film. Machine has running stable functions and highly visual, high-degree automatically, it is the necessary facility in printing, packaging, food, pharmaceutical industries.

SLITTING-MACHINE

Main technical parameters:

1). Slitting material: 0.012-0.12mm BOPET;0.02-0.12mm CPP. BOPP film;

2). Maximum machine speed: 400m/min; Normal slitting speed 350m/min, machine running smoothly and steady, non obvious vibration or noise. Machine running smoothly and steady, non obvious vibration or noise.

3). Maximum load-bearing of unwind: 2000 kg; Maximum diameter: 1000 mm;

4). Maximum rewind diameter of rewind: 800 mm;


5). Maximum effective width: 4200mm; maximum slitting width 1200mm; maximum secondary rewinding width: 2100mm

6). Minimum slitting width: 400mm; (exceed 1200mm, we suggest use air-shaft for rewind)

7). Adaptable client's layout design required 6 inches steel tube for unwind.

8). According to client's layout design 6 inches dedicated steel tube choke plug for unwind.

9). Rewind uniformity less than 1 mm, it can be used for 6 inches and 3 inches paper-core rewind.

10). Machine total power: AC 380V 4 line about 65 KW;

11). Air-source pressure more than 5kg/cm2

12). External dimension: 6200mm x 5800mm x 2100mm (L x W x H);

13). Machine body weight: about 20 Tons;

slitting machinery details 1

slitting machinery details 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
