Slitter and rewinder Model GFTW1280C2

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: GFTW1280C2

Application: Mechinery&Hardware

Type: High-Speed Slitting Machine

Work Method: Flat Knife Slitting

Structure: Frame Part

Packaging Type: Film

Classification: Ultrasonic Label Cutting Machine

Applicable Process: Process Materials

Suitable Substrates: Film Cutting

Packaging Material: Plastic

Slitting Material: CPP,CPE, BOPP, PET, PE, MCPP,Thermal Transfer Film

Thickness: 10--100μm

Unwind Maximum Diameter: 800mm

Effective Width: 200-1300mm

Rewind Diameter: 600mm

Rewind Width: 50-1300mm

Machine Speed: 500m/min

Whole Machine Power: 380V / 3 Phase, 50Hz About 18KW

Rewind Paper-core: 3inches

Shaft Type: Duplex Shafts

Additional Info

Packaging:  SEAWORTHY WOODEN OR NAKED

Productivity: 800m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

Slitter and rewinder Model GFTW1280C2

Application:
Slitter and rewinder Model GFTW1280C2 with automatic constant tension drive unwind and taper tension control function, tension keeping function when machine stopped.
Slitter and rewinder Model GFTW1280C2  can Slitting into suitable harness, length and neatly roll material. Machine adopts SIMENS HMI, PLC programmable controller, digital module. JAPANESE AC Servo Motor drive for Rewind, YASKAWA Servo Motor drive for Traction. It make whole machine line speed and 3segments tension achieved synchronous automatic control. Soft start and soft stop achieved by this machine.
Slitter and rewinder Model GFTW1280C2  adopts mechanical structure of easy operation, easy assembly, easy disassembly, easy maintenance




Slitter And Rewinder

Main Techinical Parameters:
1). Effective width: 200-1320mm
2).Unwind maximum diameter: φ800mm
3).Rewind width: 50-1300mm (3inches ball type slide type air-shaft, effective width 30-1300mm)
4).Rewind diameter: 550 mm
5).Rewind paper-core: 3inches
6).Machine speed: 0-400m/min
7).Whole machine power:380V / 3 Phase, 50Hz, about 25 KW

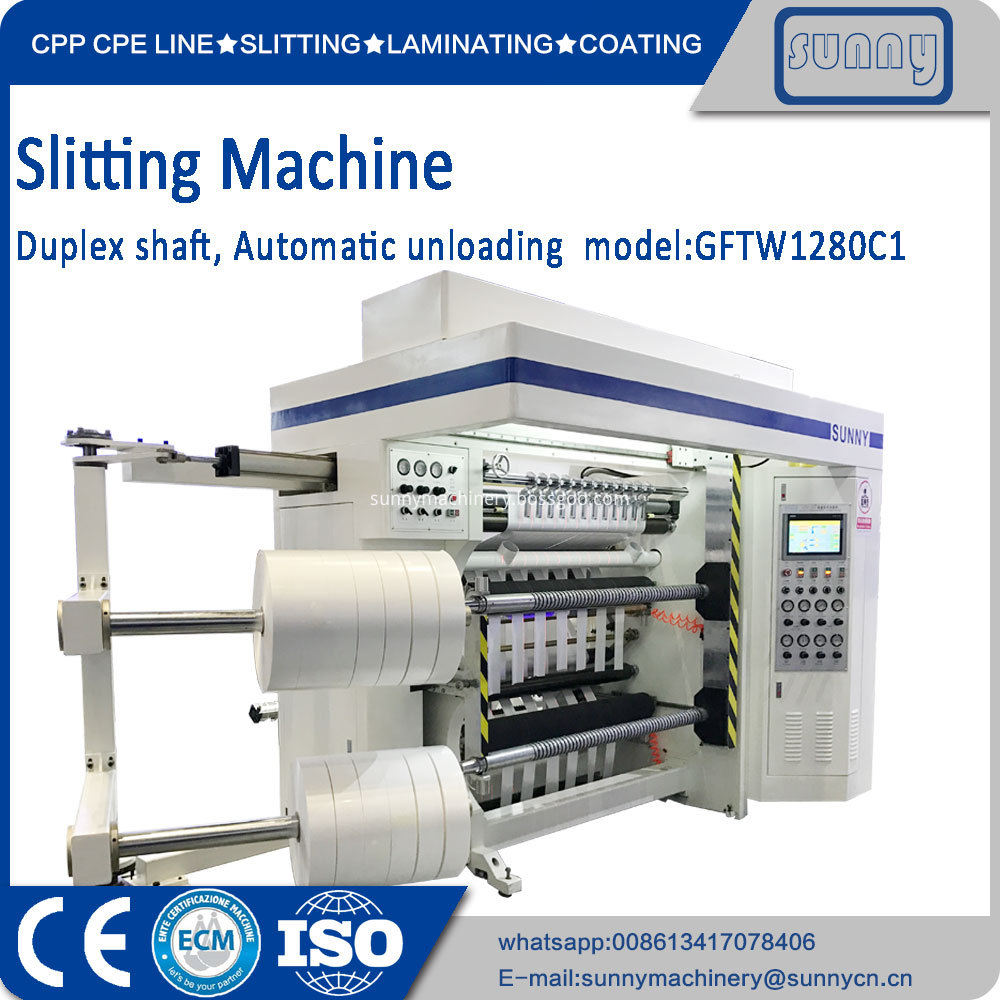

slitter and rewinder machine

slitting machine


slitting machine


Extrusion laminating machine


slitting machine ce



Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
