Plastic film stripping machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 90 Days

Basic Info

Model No.: GHJ1100B

Range Of Suitable Material: 40-250gsm

Range Of Material Width: Maximum 1100mm

Machine Speed: Maximum 200m/min

Operation Speed: Operation Speed

Unwind Diameter: Maximum φ1700mm(3 Inches, 6 Inches Paper-core)

Paper Base Material Rewind Diameter: Maximum.φ1700mm(3 Inches, 6 Inches Paper-core)

Ilm Base Material Unwind Diameter: Maximum φ600mm(3 Inches Paper-core)

Power Source: Power Source:

Complete Machine Weight: About 6 Tons

External Measurement: 6056mm×2000mm×2174mm

Additional Info


Productivity: 200m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

Plastic film stripping machine  GHJ1100B

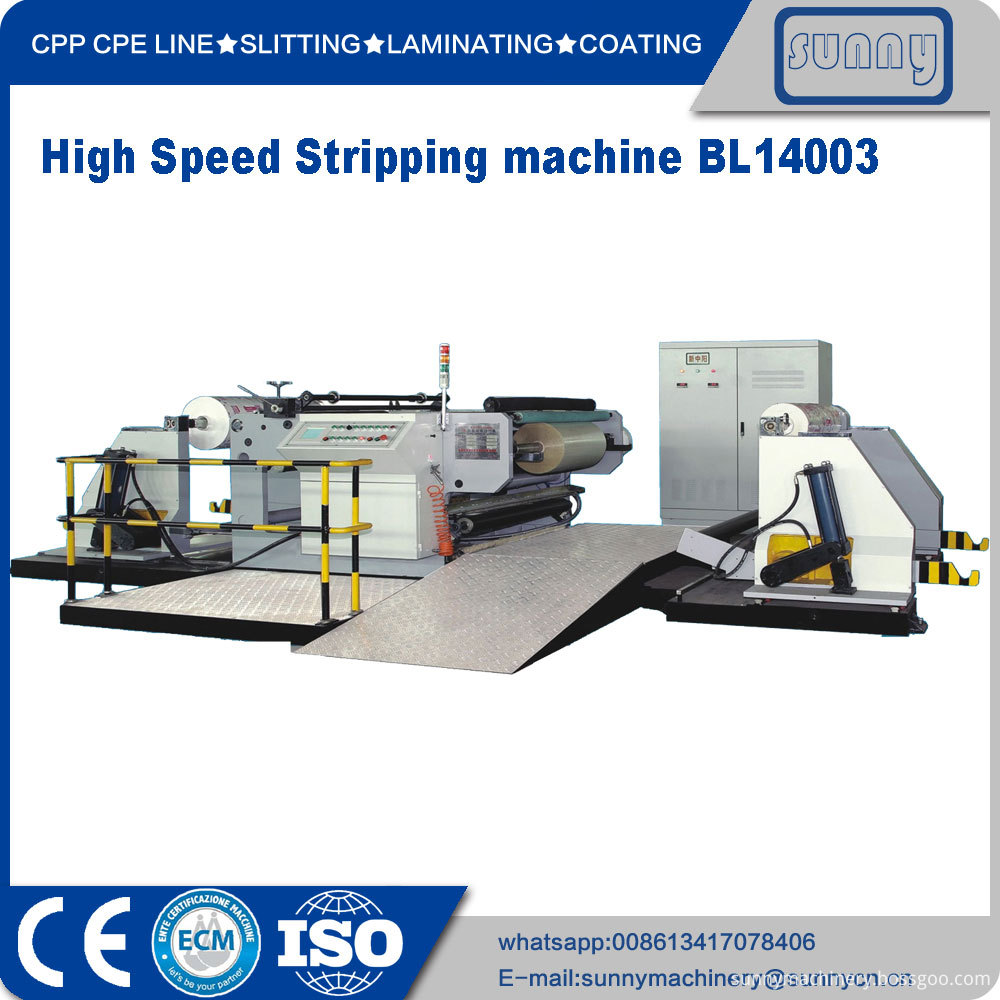

Plastic film stripping machine is mainly used for production of transferring or peeling web metalized paper, and production of rewinding & slitting web or roll paper manufacturing technique.  High-Speed-Stripping-machine-BL14002-06

The main technical parameters:

1). Range of suitable material:  40-250gsm

2). Range of material width: maximum 1100mm

3). Machine speed: maximum 200m/min

4). Operation speed:  maximum 180m/min

5). Unwind diameter:  maximum φ1700mm(3 inches, 6 inches paper-core)

6). Paper base material rewind diameter: maximum.φ1700mm(3 inches, 6 inches paper-core)

7). Film base material unwind diameter: maximum φ600mm(3 inches paper-core)

8). Unwind motor:  11KW

9). Rewind motor:    18.5KW(1st rewind);  7.5 KW(2nd rewind)

10). Peeling motor: 4KW

11). Main traction motor: 15 kw

12). External measurement:    6056mm×2000mm×2174mm

13). Complete machine weight:  about 6 tons

14). Power source:  380V±10% 50HZ, 3phase 5 lines

15). Air pressure:  0.8MPa


slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.

Slitting Machine


slitting machine
