Liquid packaging series extrusion coating machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 180 Days

Basic Info

Model No.: TB1600

Type: Profile Extruder

Plastic Processed: PE

Product Type: Profile Extrusion Molding Machine

Feeding Mode: Multiple Feed

Assembly Structure: Integral Type Extruder

Screw: Single-Screw

Engagement System: Full Intermeshing

Screw Channel Structure: Deep Screw

Exhaust: Exhaust

Automation: Automatic

Computerized: Computerized

Coating Resin: LDPE, PP, EVA, EAA Etc Coating Level)

Suitable Substrate Material: Prime Layer: BOPP, BOPET, BOPA, Paper (30-400g/m3)

Maximum Working Speed: 150 M/min

Working Speed: 120 M /min

Coating Width: 500-1000mm

Run Roller Width: 1100mm

Coating Thickness Error: ≤3%

Auto. Tension Setting Range: 30-80kg/ Full Width

Maximum Extruder Volume: Max. 180kg/h X 3 Sets, 100kg/ H X 1 Set

Laminating Cool Roller: Φ600 X1100mm

Additional Info


Productivity: 150 kg/h

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477


Product Description

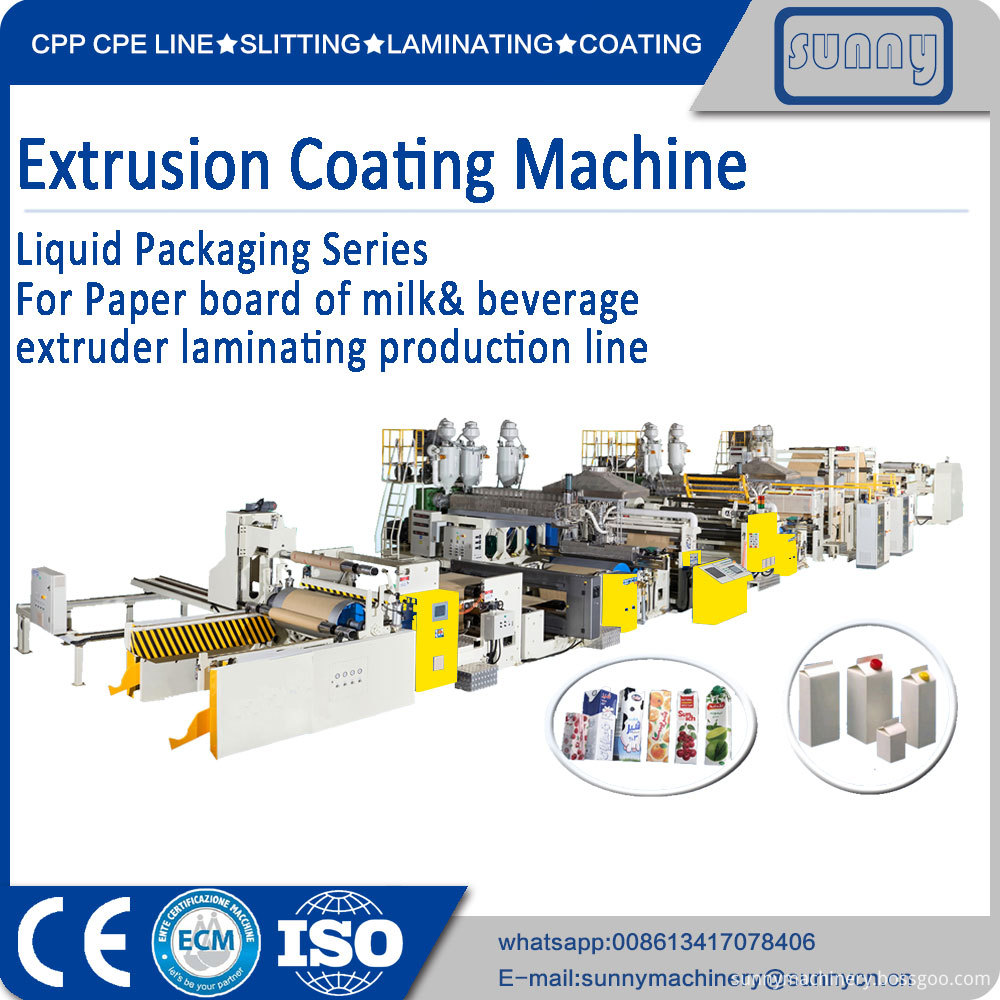

Liquid packaging series  extrusion coating machine TB1600

Paper Board Of Milk Beverage Extruder Laminating Production Line

Liquid packaging series  extrusion coating machine is  Suitable substrate material: prime layer: BOPP, BOPET, BOPA, Paper (30-400g/m3), textile fiber, Sandwitch layer: aluminium foil, CPP ,CPE. It is the advanced products elaborately manufactured by our factory reference advanced technology at home and abroad and the actual production condition. The structure of this machine is reasonable, appearance is novelty, it is easy to maintain and operate and less energy consumption, high efficiency, products enjoy excellent quality, which is the ideal equipment for producing membrane laminating material.

Main technical parameters

1). It is suitable for coating resin: LDPE, PP, EVA, EAA etc coating level)

2). Suitable substrate material: prime layer: BOPP, BOPET, BOPA, Paper (30-400g/m3), textile fiber, Sandwitch layer: aluminium foil, CPP ,CPE

3). Maximum working speed: 150 m/min; working speed 120 m /min

4). Coating width: 500-1000mm; run roller width: 1100mm

5). Coating thickness error: ≤3%

7). Auto. Tension setting range: 30-80kg/ full width

8). Maximum extruder volume: Max. 180kg/h x 3 sets, 100kg/ h x 1 set

9). Laminating cool roller:  Φ600 x1100mm

More details as follow:

extrusion laminating machine 01

extrusion laminating machine 02

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
