Duplex coating head multifunction pape coating machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 180 Days

Basic Info

Model No.: TB2-1600

Effective Width: 1600mm

Suitable Base Material: PET, BOPP Film

Thickness: 0.012-0.050mm

Maximum Machine Speed: 120m/min

Maximum Running Speed: 100m/min

Maximum Unwind Diameter: Φ800mm

Maximum Rewind Diameter: Φ800mm

Heating Method: Electric-heating, Hot-air Impact Drying

Tension Control Accuracy: ≤±2N

Anilox Roller Bounce: ≤±0.02mm

Additional Info

Packaging: NAKED OR WOODEN PALET

Productivity: 80 m/min

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 8477

Port: SHANTOU

Product Description

Duplex coating head multifunction pape coating machine TB2-1600

Duplex coating head multifunction pape coating machine adopts various coating operations of BOPP, PET etc reel-up material, which has strong adaptable gravure web roller ration coating head system directly, coating weight is 1-8g/m2, suitable viscosity range: coat No.4 cup 15-25S.

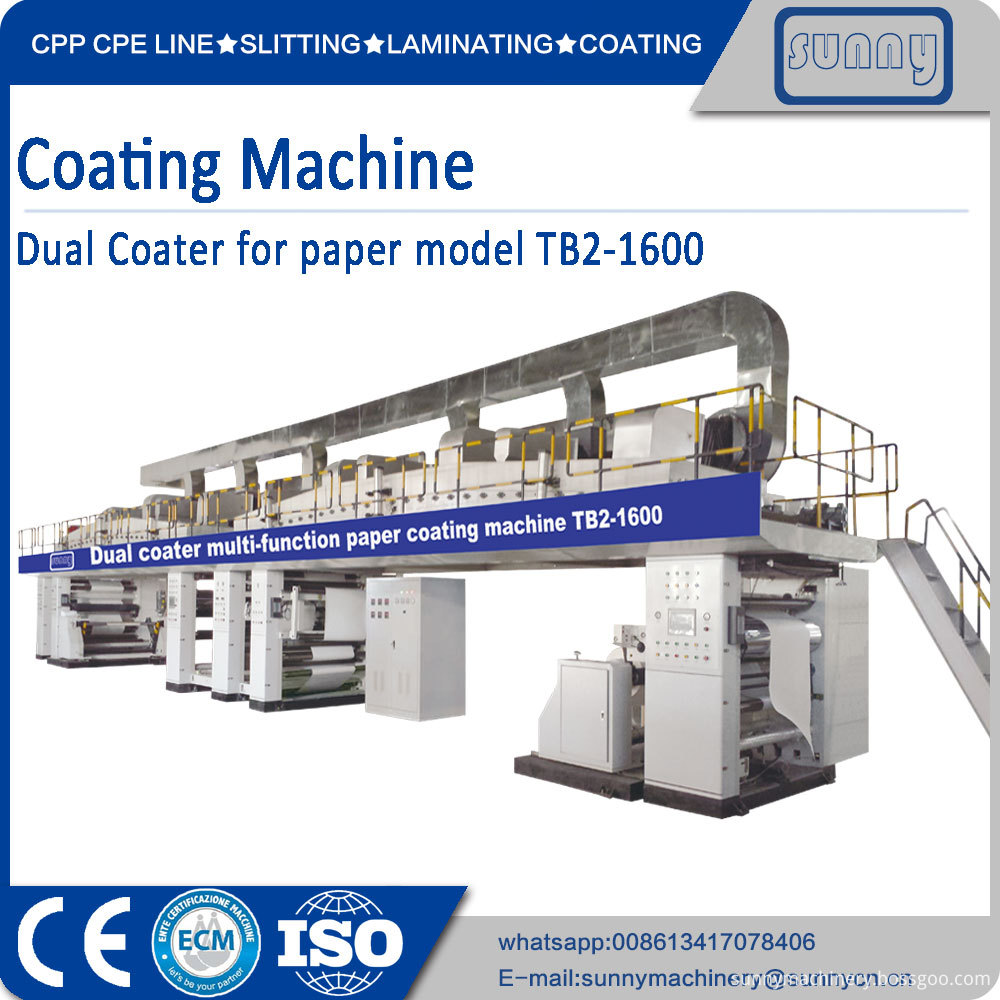

coating-machine-4

Main Technical Parameters:

1). Effective Width: 1600mm

2).  Suitable base material: PET, BOPP film 0.012-0.050mm

3).  Maximum machine speed: 120m/min

4).  Maximum running speed: 100m/min

5). Maximum unwind diameter: φ800mm

6). Maximum rewind diameter: φ800mm

7).  Heating method: electric-heating, hot-air impact drying

8). Maximum drying temperature: 80℃

9).  Reel core diameter:  3 inches.6 inches

10). Reel up end face flatness: ≤±1mm

11).  Tension control accuracy: ≤±2N

Tension distinguish accuracy: 1 N

12). Film surface temperature difference: ≤±1.5℃

13).  Anilox roller bounce: ≤±0.02mm

14).  Power supply: 380V±10%, 50HZ, 3 Phase 5 Lines

15).  Complete machine power: About 320kw (drying oven heating power: 290kw)

16). Air-Source: 0.7MPa,0.3m3/min  drying compressed air

17).  External dimension: 163800 mm (L) x 4300 mm (W) x4200 mm (H)

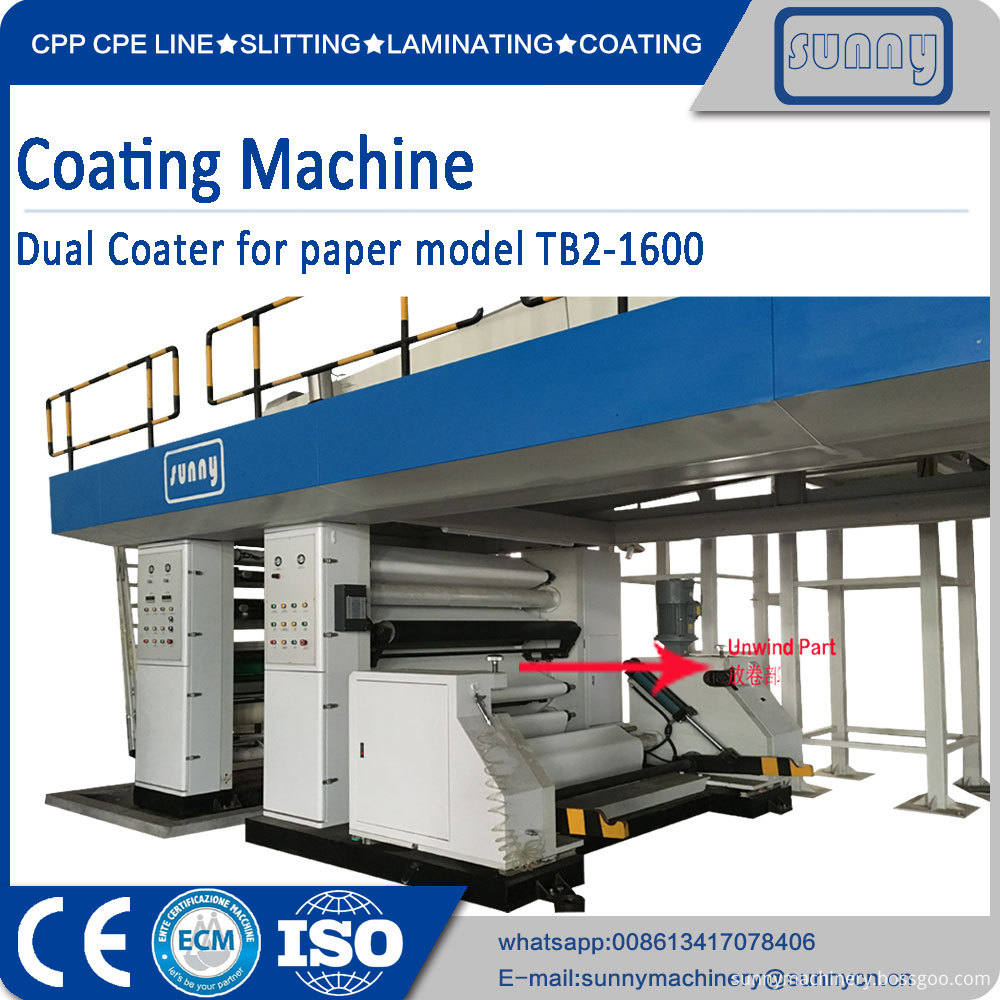

coating-machine-2

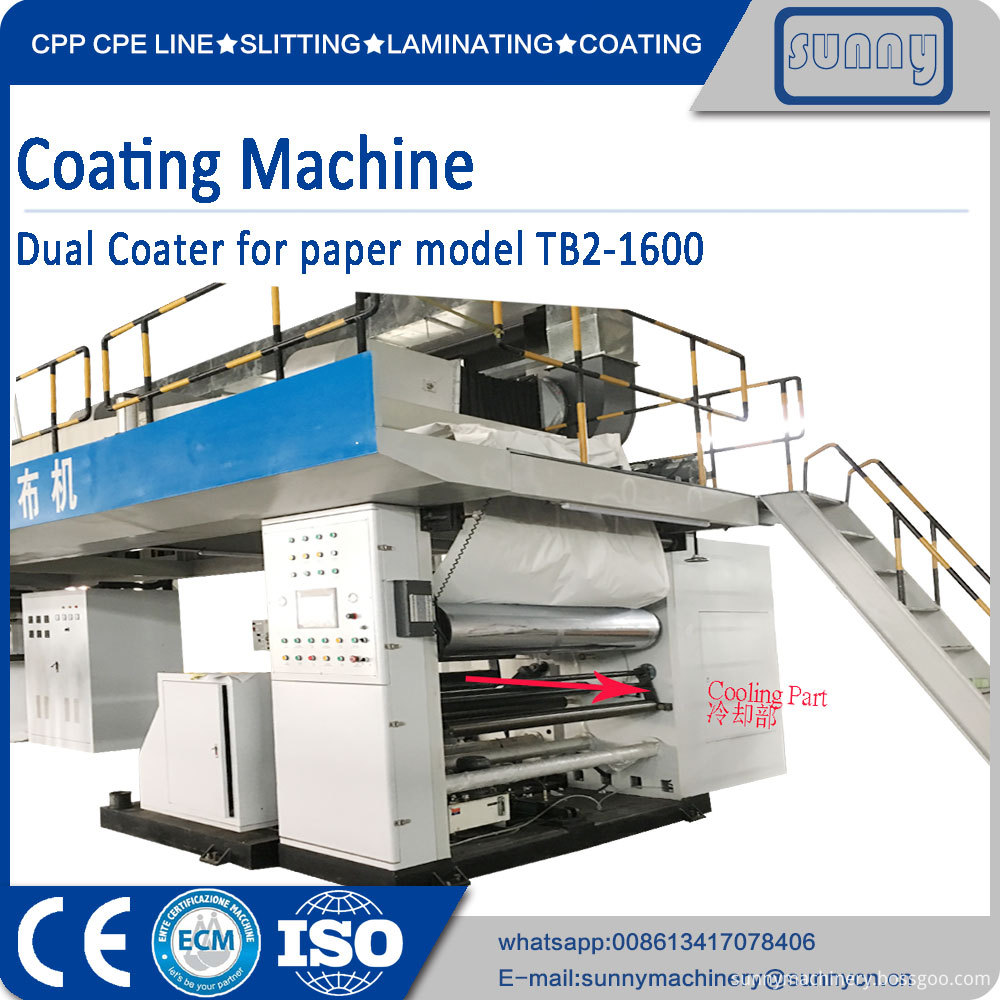

coating-machine

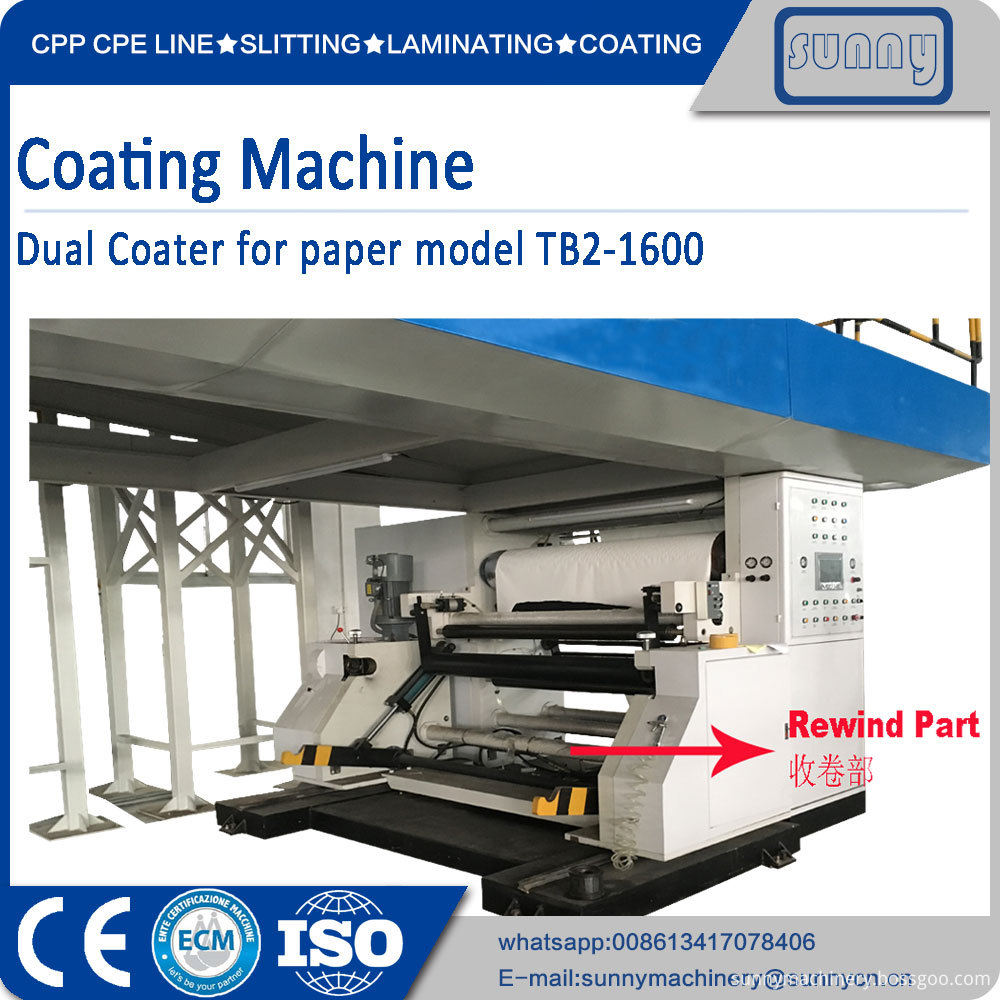

coating-machine-5

slitting machine

slitting machine

Extrusion laminating machine

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
