Automatic center folding machine for POF Shrink film

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 90 Days

Basic Info

Model No.: DZ1400

Classification: Knife Folding Machine

Folding Type: Double Parallel Fold

Paper Inputting Type: Continuous Feeding

Type: Paper Folding Machine

Computerized: Computerized

Automatic Grade: Automatic

Folding Mechanism: Folding Buckle

Structure: Folding

Folding Material: 10-100um, POF / HDPE / LDPE / CPP / BOPP

Maximum Machine Speed: 400 M / Min

Unwind Maximum Load-bearing: 1000 Kg

Unwind Maximum Diameter: 1000 Mm

Minimum Unwind Width: 400mm

Rewind Maximum Diameter: 700 Mm

Maximum Effective Width: 1400 Mm;

Machine Total Power: AC 380V 3 Phase 5 Lines. About 14.5 Kw

External Dimension: 4000mm X 3500mm X 2500mm (L X W X H)

Machine Weight: About 2 Tons

Additional Info

Packaging: naked paking

Productivity: 400 M / MIN

Brand: SUNNY

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 100 SETS PER YEAR

Certificate: CE

HS Code: 84778


Product Description

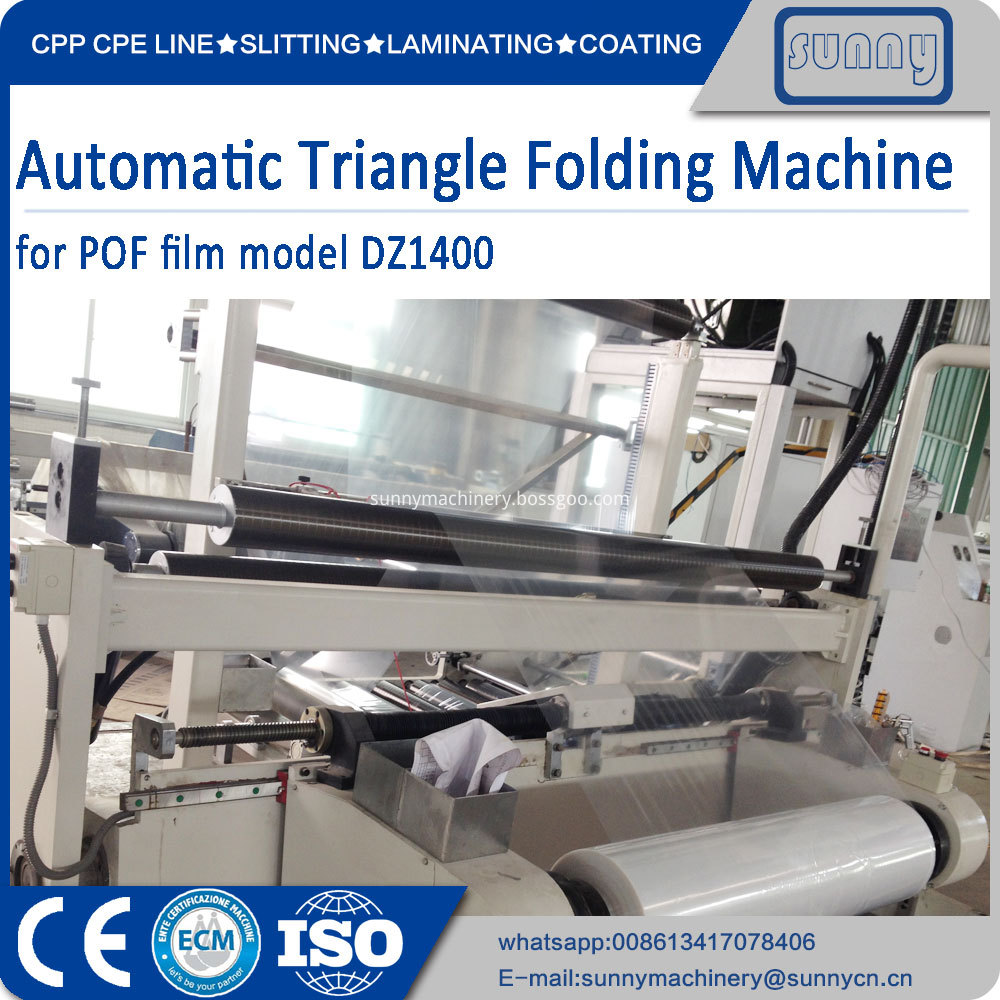

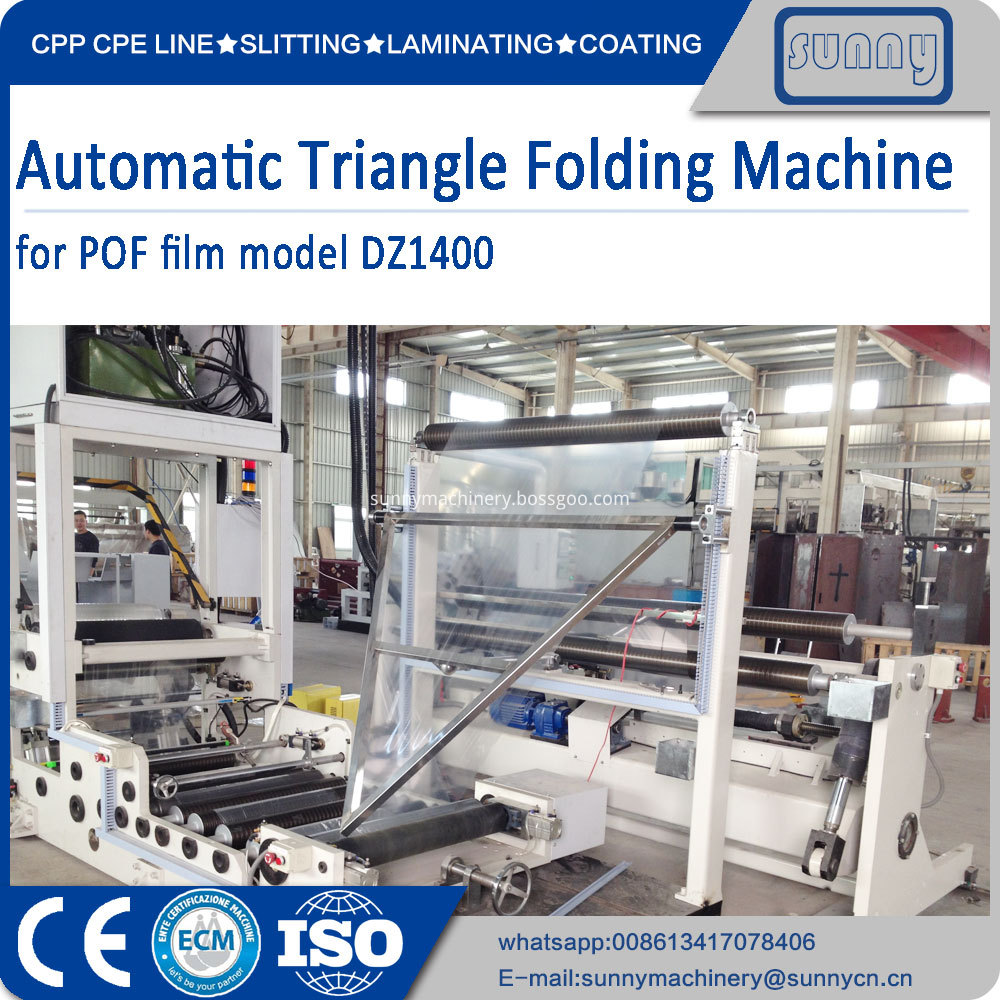

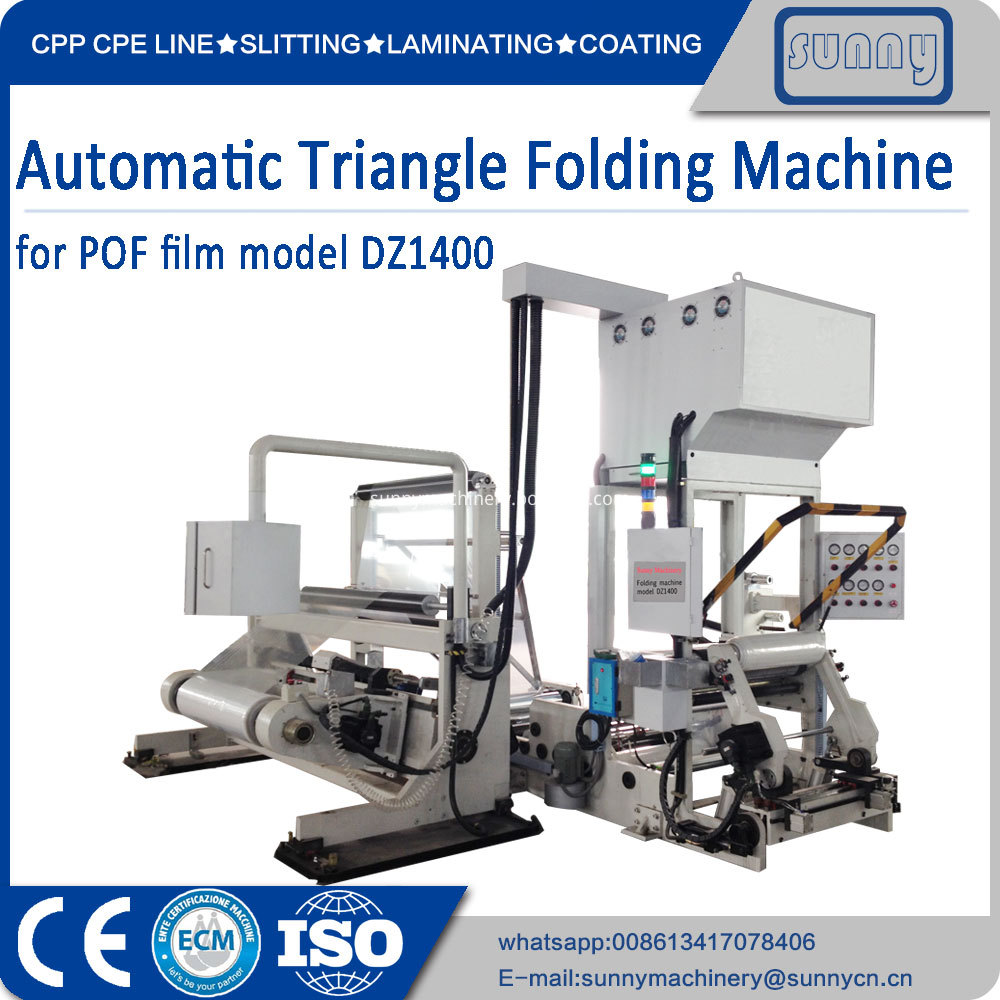

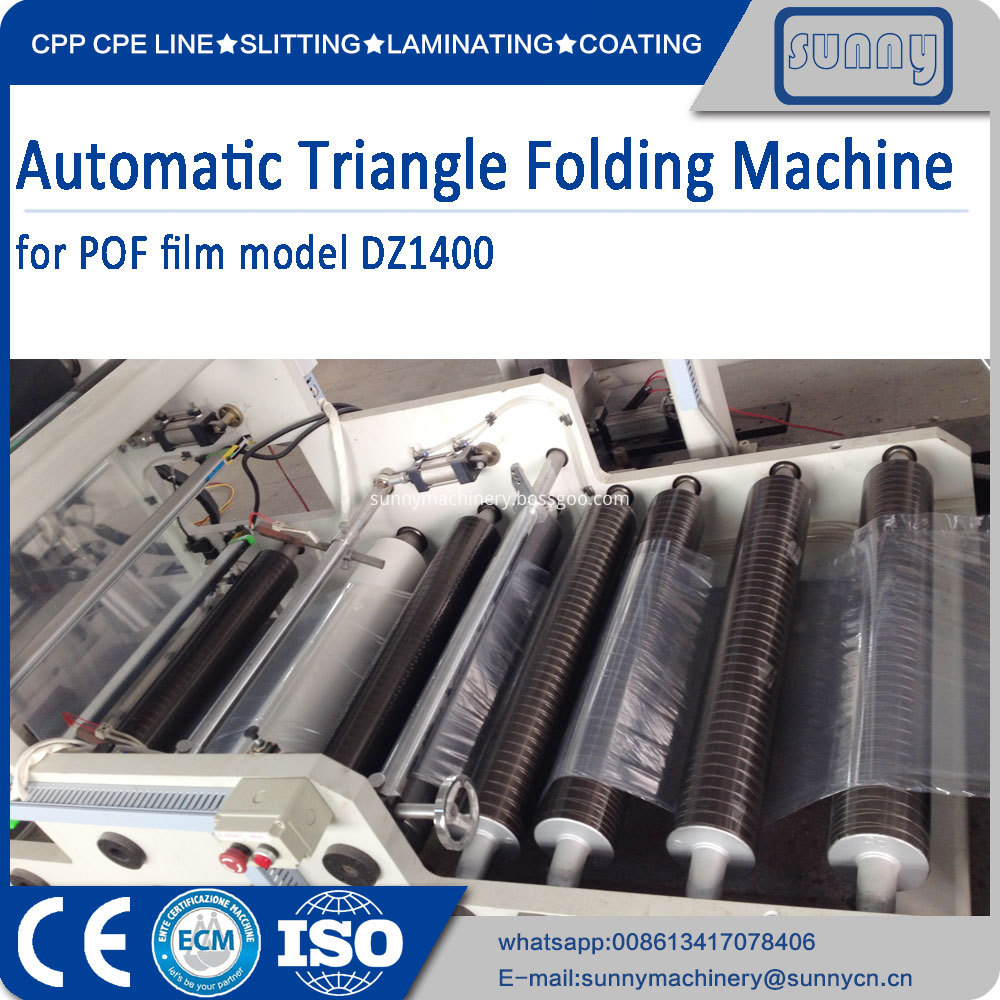

Automatic center folding machine for POF Shrink film

Application: Automatic center folding machine for POF Shrink film provided raw material by Unwind device. By Folding device andTraction heating cutting device to produce different specification material of customer. whole machine adopts PLC, Ditital module and SIMENS HMI achieved full automatic control, full automatic tension control ensure machine run in high speed and with high degree of automation and stable performance.


Main Technical Parameters:

1. Folding material: 10-100μm, POF / HDPE / LDPE / CPP / BOPP

2.Maximum machine speed: 400 m / min; Normal running speed 300 m / min; machine running stable, non-obvious vibrate and noise.

3.Unwind Maximum load-bearing: 1000 kg; Maximum diameter: 1000 mm. Minimum Unwind width is 400mm.

4.Rewind Maximum diameter: 700 mm

5.Maximum effective width: 1400 mm;

6.Unwind reeling core: 3 inches and 6 inches plug, diameter is 70mm paper-core;

7.Rewind reeling core: 3 inches and 6 inches paper-core

8.Rewind neatness < 1 mm

9.Machine total power: AC 380V 3 phase 5 lines. About 14.5 kw

10.Air-source air pressure > 5 kg/cm2

11.External dimension: 4000mm x 3500mm x 2500mm (L x W x H)

12.Machine dead load: About 2 Tons


slitting machine

slitting machine

Extrusion laminating

slitting machine ce

Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
